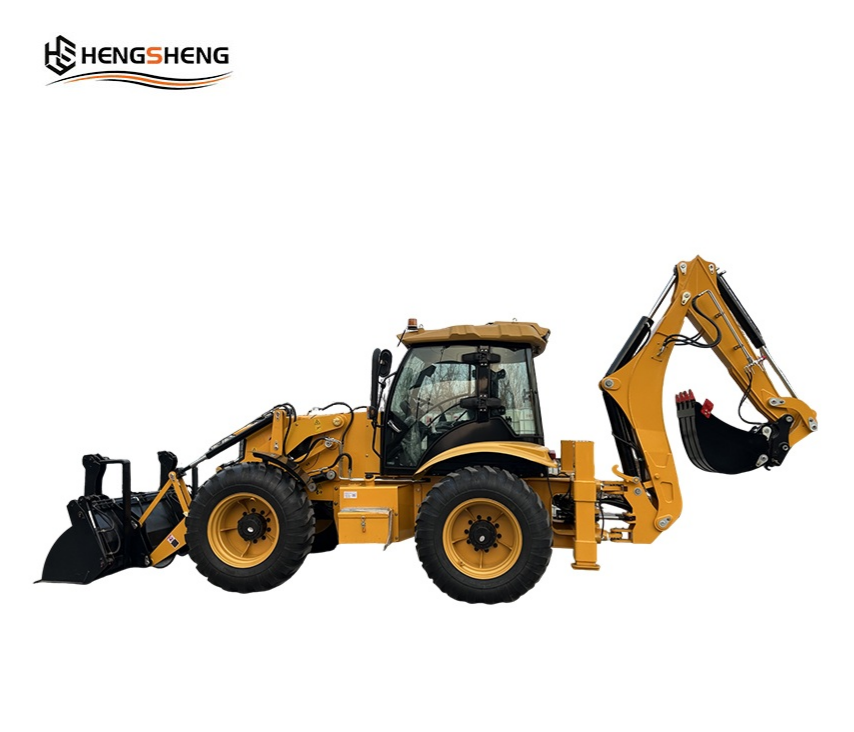

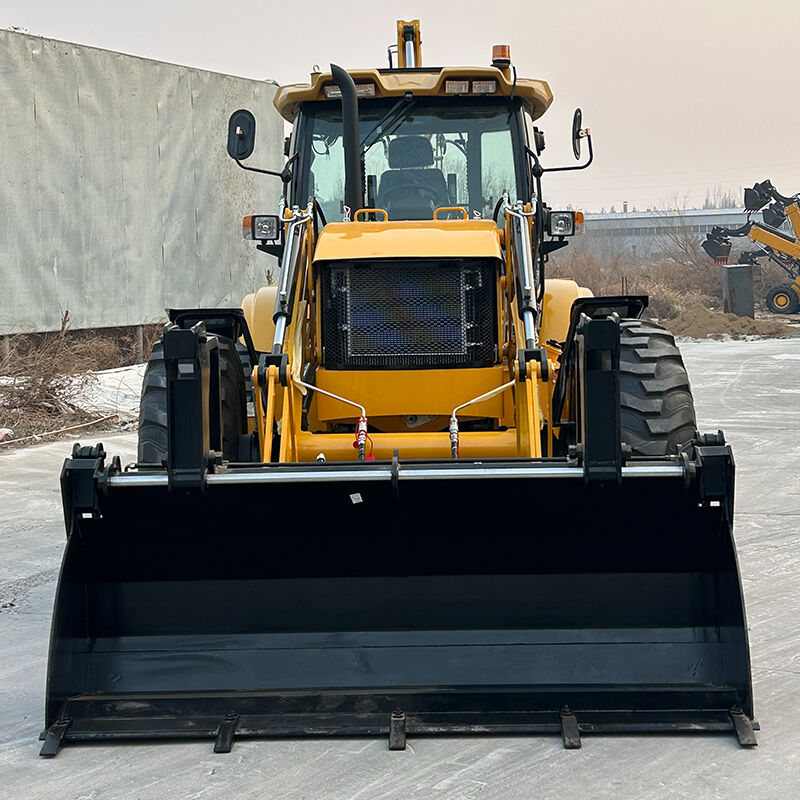

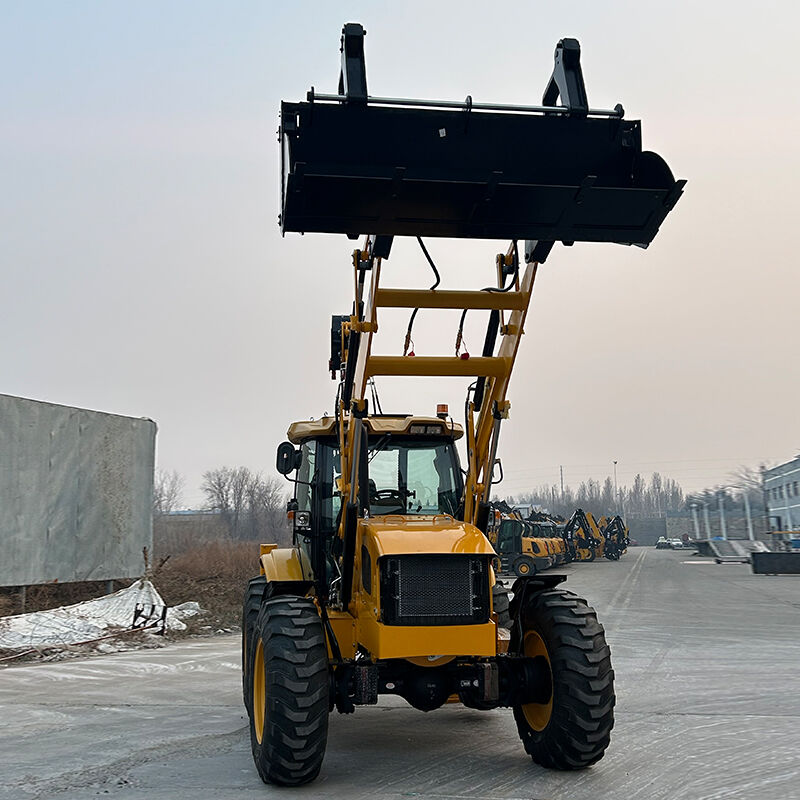

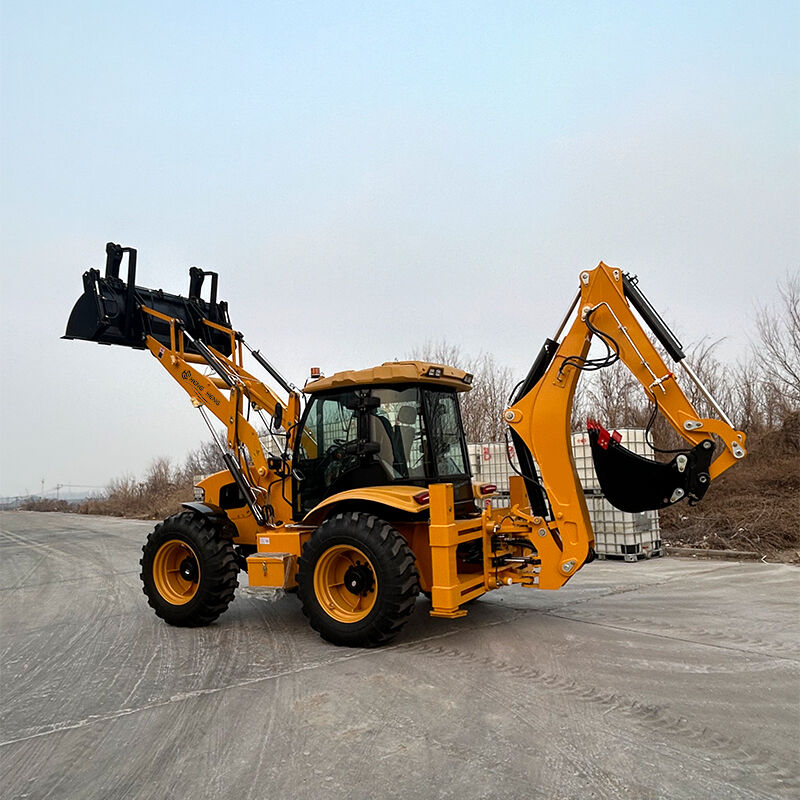

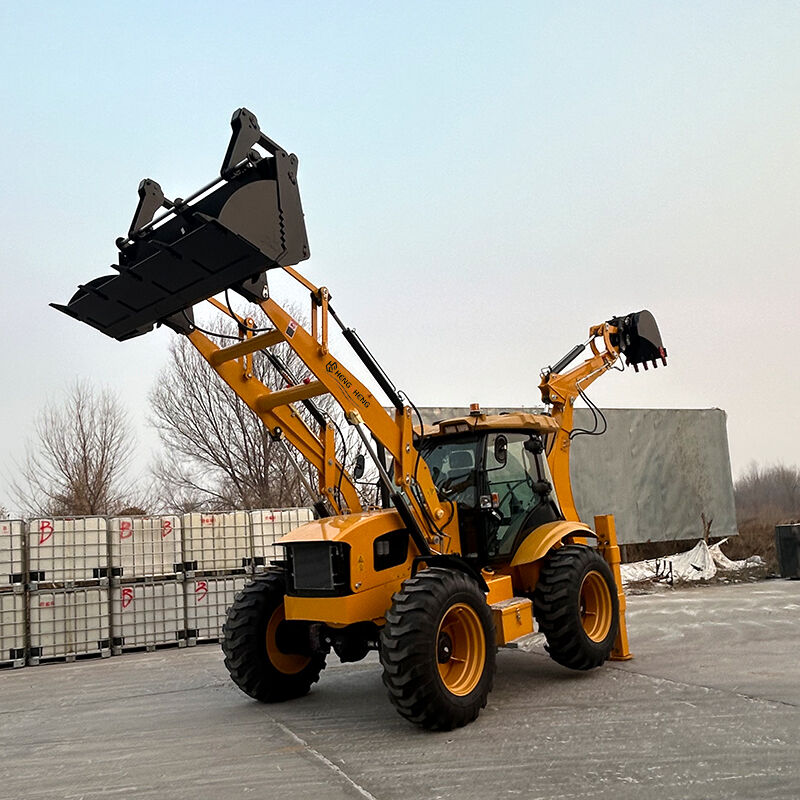

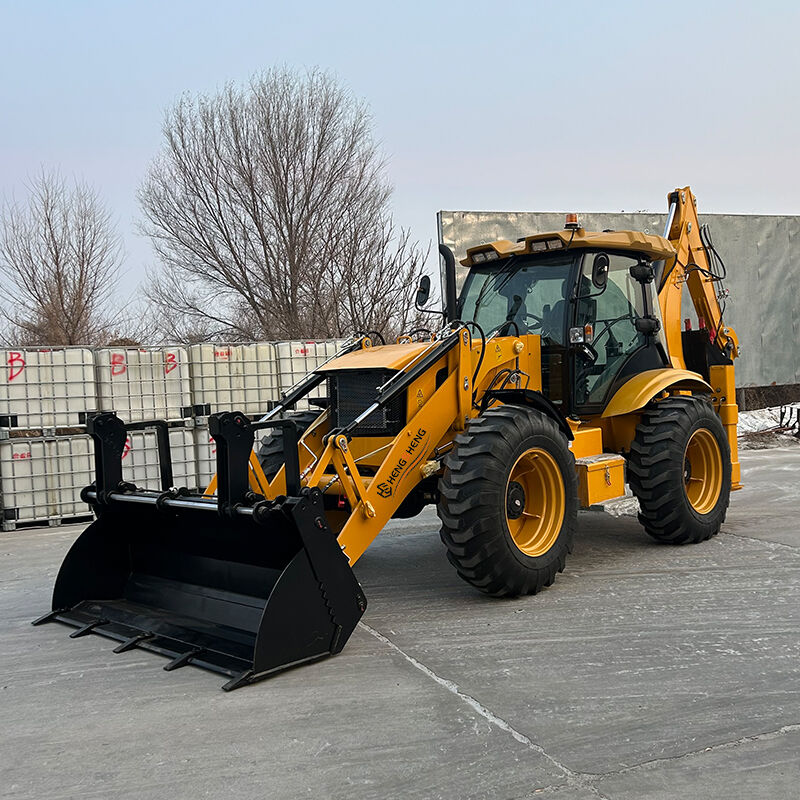

HS-4CX Backhoe Loader – 4-Ton Rated Capacity, Multifunctional Construction Machinery, Compact Design for Digging, Loading, Lifting & Site Work
The HS-4CX Backhoe Loader, manufactured by Hebei Hengsheng Heavy Industry Machinery Equipment Co., Ltd., is a sit-down operated multifunctional construction machinery designed for integrated digging, loading, lifting, material handling and site leveling tasks. Engineered and produced in strict compliance with CE/EU standards and national construction machinery safety specifications, this backhoe loader meets global safety and operational requirements, supporting smooth market access for construction, municipal, agricultural and industrial projects worldwide.
As a versatile dual-purpose machine, the HS-4CX combines the functions of a loader and an excavator, delivering reliable performance, flexible maneuverability and stable operation on construction sites, rural roads, farmlands and urban municipal works. Built with a heavy-duty steel frame, wear-resistant buckets and durable tires, it adapts to complex working conditions such as uneven ground, muddy roads and narrow spaces. Customizable bucket specifications, working attachments and body colors are available to meet diverse operational and brand requirements.
The HS-4CX is made-to-order with no regular inventory. The standard production and delivery cycle is 30 days after order confirmation and deposit payment. Every unit undergoes comprehensive factory mechanical testing and video pre-shipment inspection to ensure zero defects, meeting the strict quality demands of construction and engineering operations.
The HS-4CX is precision-engineered for stable and efficient multifunctional operation, with all key specifications strictly aligned with factory and industry standards:
| Parameter | Value/Description |
|---|---|
| Model | HS-4CX |
| Rated Load Capacity | 4000 kg |
| Operating Weight | 5200 kg |
| Overall Size (L×W×H) | 5800×1850×2450 mm |
| Standard Bucket Capacity (Loader) | 0.8 m³ |
| Standard Digging Bucket Capacity (Backhoe) | 0.4 m³ |
| Maximum Digging Depth | 3500 mm |
| Maximum Lifting Height | 4200 mm |
| Engine | Industrial diesel engine (national standard emission) |
| Operation Mode | Sit-down operated |
| Tire Type | Front: 16/70-20; Rear: 12.5/80-18 |
| Braking System | Hydraulic brake, handbrake |
| Steering System | Hydraulic power steering |
| Continuous Working Hours | About 8 hours per full fuel tank |
| Condition | New |
| Place of Origin | Hebei, China |
| Category | Parameter (CN/EN) | Specs |
|---|---|---|
| I. Overall Dimensions & Performance Parameters | Length (with bucket on ground) | 6450mm |
| Overall width (at stabilizer) | 2500mm | |
| Load Bucket width | 2300mm | |
| Height (To the top of the cab) | 3120mm | |
| Height (To the top of the digging pole) | 3940mm | |
| Wheelbase | 2335mm | |
| Back wheel Tread | 2139mm | |
| Rated load | 2800KG | |
| Operating weight | 8000KG | |
| Rated bucket capacity (Loader) | 1.5m³ | |
| Max. dump clearance | 2800mm | |
| Optional Max. dump clearance | 3100mm | |
| Dump reach | 870mm | |
| Radius of turn (Outside of bucket) | 5750mm | |
| Rated digging bucket capacity | 0.3m³ (620mm width) | |
| Max. digging depth (telescopic digging boom) | 4000mm | |
| Optional digging depth | 5000mm-5500mm | |
| Max. digging radius | 5345mm | |
| Max. dumping height | 3740mm | |
| Max. Digging Height | 5470mm | |
| Lifting force at Max. digging radius | 1220kg | |
| II. Engine Parameters | Brand/Model | YUCHAI VCD4J22T-125 |
| Type | InLine, Direct injection, Four-Stroke, Water Cooling | |
| Rated output | 91kW | |
| Optional engine | (92kW) EPA4 F36 (FPT) / (90kW) EPA4 QSF3.8 | |
| III. Drivetrain | Torque Converter Model | 315 |
| Cooling type | Pressure oil circulating | |
| Gearbox Type | Synchromesh mechanical shift | |
| Drive axle Type | Four wheel drive | |
| Steering type | Four wheel steering, Crab walk | |
| Gear shift position | 4F/4R | |
| Speed (F/R, km/h) | F1:5 / F2:10 / F3:18 / F4:40 / R1:5 / R2:10 / R3:18 / R4:32 | |
| Size of tire | 16.9-28 | |
| IV. Hydraulic System | Working pump discharge | 63ml/r |
| Working pump pressure | 22MPa | |
| The hydraulic oil tank | 125L | |
| Diesel fuel tank | 125L | |
| V. Packing Specification | Packing Quantity (1*45HC) | 2 Units |
The HS-4CX Backhoe Loader is widely applicable to diverse construction and engineering scenarios requiring multifunctional operation:
1.Construction Sites: Foundation digging, soil loading/unloading, gravel handling and site leveling in residential, commercial and industrial construction projects.
2.Urban Municipal Works: Road repair, pipeline laying, ditch digging and waste material handling in urban streets, parks and public facilities.
3.Rural Engineering: Farmland consolidation, irrigation channel digging, rural road construction and small-scale water conservancy projects in rural areas.
4.Agricultural Operations: Livestock farm waste handling, farmland soil turning, feed material transportation and agricultural infrastructure maintenance.
5.Logistics & Industrial Yards: Short-distance material loading/unloading, pallet handling and yard cleaning in industrial parks, freight yards and small logistics centers.
Equipped with a high-performance industrial diesel engine, the HS-4CX delivers strong power output and stable torque, ensuring efficient digging, loading and lifting operations even under heavy-load and harsh working conditions. The engine features low fuel consumption and reliable performance, supporting about 8 hours of continuous work per full fuel tank, effectively improving project efficiency and reducing operational costs.
Designed with a compact body and reasonable wheelbase, the HS-4CX offers excellent flexibility and adaptability, easily operating in narrow spaces such as small construction sites, rural lanes and urban alleyways. Hydraulic power steering enables flexible and labor-saving turning, reducing driver fatigue and improving operational accuracy in complex environments.
Built with a heavy-duty reinforced steel frame and high-strength working arms, the HS-4CX has strong anti-deformation and anti-wear capabilities, suitable for long-term high-intensity construction work. The loader and backhoe buckets are made of wear-resistant steel plates, with enhanced durability for digging hard soil, gravel and construction waste. Wear-resistant tires adapt to muddy, gravel and uneven roads, extending the service life of the whole machine.
Integrating loader and excavator functions in one machine, the HS-4CX realizes one-machine multi-purpose, eliminating the need for separate loader and excavator equipment and reducing procurement costs. It supports quick switching between loading, digging, lifting and leveling operations, and can be equipped with optional attachments such as breakers and grapples to meet more complex engineering needs.
The spacious and ergonomic driving cabin is equipped with a shock-absorbing seat and clear instrument panel, reducing vibration and fatigue during long working hours. The control levers and pedals are reasonably laid out for simple and proficient operation. The machine adopts a mature and simple structure design with universal spare parts, making daily maintenance convenient and low-cost, minimizing downtime for construction projects.
The HS-4CX Backhoe Loader fully complies with CE/EU safety standards and national construction machinery quality standards. It is equipped with complete compliance documents, factory mechanical test reports and quality inspection certificates, supporting smooth customs clearance and market access in global markets such as Europe, Southeast Asia, the Middle East and other engineering-intensive regions.
Q1: What certifications does the HS-4CX have?
A1: The HS-4CX meets CE/EU standards, with complete mechanical test reports and compliance documents provided for global market access.
Q2: Can I customize the HS-4CX backhoe loader?
A2: Yes, we offer customizable bucket specifications, working attachments and body colors to meet your operational and brand requirements for engineering projects.
Q3: What is the delivery time for the HS-4CX?
A3: The standard delivery cycle is 30 days after receiving the deposit, with transparent production updates and video pre-shipment inspections available.
Q4: How long can the HS-4CX work continuously?
A4: The industrial diesel engine supports about 8 hours of continuous operation per full fuel tank, suitable for long-term construction work.
Q5: What kind of engine and steering system does the HS-4CX use?
A5: It uses a national standard industrial diesel engine and hydraulic power steering, ensuring stable power and flexible operation for engineering tasks.
1.Inquiry & Quotation: Clients submit engineering operation requirements, and we provide detailed quotations and product solutions.
2.Order Confirmation: Sign the sales contract and receive the deposit for the HS-4CX.
3.Customization Confirmation: Confirm personalized parameters (bucket specifications, attachments, body color, etc.) with clients.
4.Production & Assembly: Strictly produce and assemble according to factory standards and customization requirements.
5.Quality Inspection: Conduct full mechanical testing and video pre-shipment inspection for multifunctional performance verification.
6.Packaging & Shipment: Made-to-order packaging compatible with standard container shipping for global delivery.
7.After-Sales Follow-Up: Track shipment and provide long-term professional after-sales service.
Hebei Hengsheng Heavy Industry provides comprehensive after-sales support for the HS-4CX Backhoe Loader:
1. 1-Year Whole Machine Warranty: Free repair and replacement of damaged parts caused by non-human factors within the warranty period.
2. Global Technical Support: A professional technical team provides online consultation and troubleshooting guidance for construction operation issues.
3. Spare Parts Supply: Long-term supply of original spare parts with fast global delivery to minimize construction downtime.
4. Operation Training: Provide detailed operation manuals and video training to help drivers master multifunctional operation and maintenance skills quickly.
