SH600-9 Hydraulic Excavator – 56 Ton Operating Weight, 298KW Cummins Engine, 3m³ Standard Bucket, Ultra-Heavy Duty Digging for Mining, Large Infrastructure & Demolition Projects
Manufactured by Shandong Shitian Heavy Industry Co., Ltd., the SH600-9 Hydraulic Excavator is an ultra-heavy duty sit-down operated construction machine, engineered for extreme heavy-load digging, loading, demolition and earthmoving in large-scale mining, infrastructure and industrial projects. Designed and produced in strict compliance with CE/EU safety standards and national construction machinery specifications, this excavator meets global safety and performance requirements, enabling seamless market access for mining, water conservancy, large construction and demolition projects worldwide.
Built for rigorous high-intensity operations, the SH600-9 is equipped with a high-performance Cummins QSM11-C400 diesel engine, delivering powerful, stable and sustained power output for long-hour heavy-duty work. Featuring an ultra-heavy reinforced steel frame, high-strength working arm and heavy-duty track system, it adapts to the harshest working conditions including rocky mountains, muddy mines, steep slopes and rugged construction sites. The advanced high-flow hydraulic system ensures precise, smooth and efficient operation, while the heavy-duty digging bucket enhances performance in handling hard rock, dense soil and construction waste. Customizable bucket specifications, working attachments (such as breakers) and body colors are available to meet diverse operational and brand requirements.
The SH600-9 is made-to-order with no regular inventory. The standard production and delivery cycle is 30 days after order confirmation and deposit payment. Every unit undergoes comprehensive factory mechanical testing and video pre-shipment inspection to eliminate defects, meeting the strict quality demands of ultra-heavy duty excavation and earthmoving operations.
The SH600-9 is precision-engineered for ultra-heavy duty performance, with all key parameters strictly aligned with factory and industry standards:
| Parameter | Specification |
|---|---|
| Model | SH600-9 |
| Type | Hydraulic Excavator |
| Operating Weight | 56000 kg |
| Engine | Cummins QSM11-C400 Industrial Diesel Engine |
| Engine Type | Six-cylinder inline, turbocharging, intercooling |
| Bore × Stroke | 125 × 150 mm |
| Displacement | 10.8 L |
| Rated Power | 298 kW / 1800 rpm |
| Standard Bucket Capacity | 3 m³ (2.5–3.58 m³ optional) |
| Bucket Width | 1968 mm |
| Bucket Digging Force | 271 kN |
| Arm Digging Force | 328 kN |
| Arm Length | 3000 mm |
| Hydraulic System | Inverted flux control pump |
| Max. Discharge Flow | 874 L/min |
| Travel Circuit Pressure | 34.3 MPa |
| Swing Circuit Pressure | 28.4 MPa |
| Pilot System Pressure | 4.9 MPa |
| Travel Motor | Variable axial piston motor |
| Travel Speed | 6.1 / 3.55 km/h |
| Drawbar Pulling Force | 349 kN |
| Grade Ability | 70% (35°) |
| Support Roller | 2 × 9 |
| Carrier Roller | 2 × 2 |
| Ground Pressure | 85.3 kPa |
| Track Width | 600 mm |
| Shoe Width | 228 mm |
| Slewing System | Disc spring compression brake |
| Swing Speed | 10.4 r/min |
| Fuel Tank Capacity | 630 L |
| Hydraulic Oil Tank Capacity | 490 L |
| System Hydraulic Oil Capacity | 610 L |
| Engine Oil Volume | 38 L |
| Cooling System Volume | 39 L |
| Overall Length | 10252 mm |
| Overall Width | 3718 / 4154 mm |
| Overall Height (to top of boom) | 4308 mm |
| Overall Height (to top of cab) | 3379 mm |
| Max. Digging Height | 10252 mm |
| Max. Dumping Height | 7150 mm |
| Max. Digging Depth | 7114 mm |
| Max. Digging Distance | 11406 mm |
| Condition | New |
| Place of Origin | Jining, Shandong, China |
| Category | Parameter | Specification |
|---|---|---|
| Engine | Model | QSM11-C400 |
| Type | Six-cylinder inline, turbocharging, intercooling | |
| No. of cylinder. Bore and stroke (mm) | 125×150 | |
| Displacement (L) | 10.8 | |
| Power output (kW/rpm) | 298/1800 | |
| Bucket | Capacity (m³) | 2.5–3.58 |
| Width (mm) | 1968 | |
| Digging Force | Bucket digging force (kN) | 271 |
| Arm digging force (kN) | 328 | |
| Hydraulic System | Pump form | Inverted flux control |
| Max. discharge flow (L/min) | 874 | |
| Travel circuit (MPa) | 34.3 | |
| Swing circuit (MPa) | 28.4 | |
| Walking System | Travel motors | Variable axial piston motor |
| Pilot system pressure (MPa) | 4.9 | |
| Travel speed (km/h) | 6.1/3.55 | |
| Drawbar pulling force (kN) | 349 | |
| Grade ability | 70% (35°) | |
| Support roller quantities | 2×9 | |
| Carrier roller quantities | 2×2 | |
| Operating Weight & Ground Pressure | Operating weight (kg) | 56000 |
| Ground pressure (kPa) | 85.3 | |
| Slewing System | Swing speed (r/min) | 10.4 |
| Brake | Disc spring compression | |
| Oil Capacity | Fuel tank (L) | 630 |
| Cooling system (L) | 39 | |
| Engine oil (L) | 38 | |
| Hydraulic oil tank / System capacity (L) | 490 / 610 | |

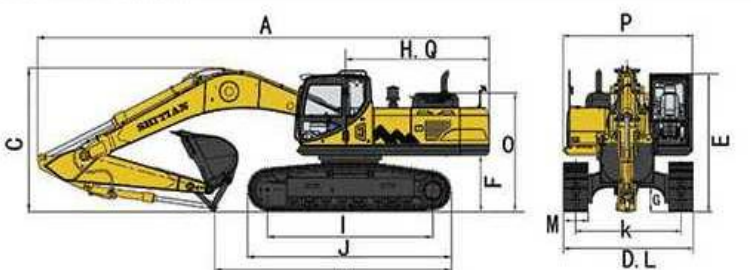

| Outline Size |  |
|
| Arm Type | A - Overall length (mm) | 10252 |
| B - Ground Contact Length (Transportation) (mm) | 4414 | |
| C - Overall height (to top of boom) (mm) | 4308 | |
| D - Overall width (mm) | 3718 / 4154 | |
| E - Overall height (to top of cab) (mm) | 3379 | |
| F - Counter Weight Ground Clearance (mm) | 1426 | |
| G - Ground clearance (mm) | 1382 | |
| H - Tail swing radius (mm) | 3822 | |
| I - Tread (mm) | 4414 | |
| J - Track Length (mm) | 5487 | |
| K - Track Gauge (mm) | 2392 / 2890 | |
| L - Track width (mm) | 600 | |
| M - Shoe width (mm) | 228 | |
| O - Bonnet Height (mm) | 2984 | |
| P - Revolving Frame Width (mm) | 3165 / 3543 | |
| Q - distance from swivel center to tail (mm) | 3774 | |
| R - Arm length (mm) | 3000 | |

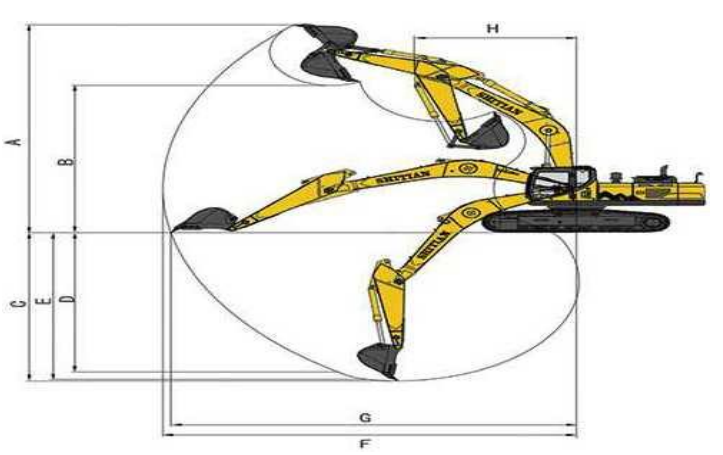

| Scope of work |  |
|
| Boom Type | A - Max. digging height (mm) | 10252 |
| B - Max. dumping height (mm) | 7150 | |
| C - Max. digging depth (mm) | 7114 | |
| D - Max. vertical digging depth (mm) | 4522 | |
| E - Max. Depth cut for 2440m (8’) Level Bottom (mm) | 6945 | |
| F - Max. digging distance (mm) | 11406 | |
| G - Max. digging radius at ground level (mm) | 11176 | |
| H - Min. swing radius of work equipment (mm) | 4840 | |
The SH600-9 Hydraulic Excavator is widely applicable to ultra-heavy duty large-scale industrial and construction scenarios:
Open-Pit Mining & Quarries: Rock excavation, ore loading, site clearing and overburden removal in large mines and quarries, adapting to high-intensity 24-hour operations.
Large Infrastructure Projects: Highway/railway subgrade construction, bridge foundation excavation, tunnel engineering and large-scale land reclamation.
Water Conservancy Projects: River dredging, reservoir excavation, dam construction and flood control engineering, suitable for deep water and muddy environments.
Heavy Demolition Works: Building demolition, concrete breaking and waste removal in large urban renewal and industrial demolition projects.
Large Industrial Construction: Heavy factory foundation digging, large equipment installation foundation construction and port terminal earthmoving.

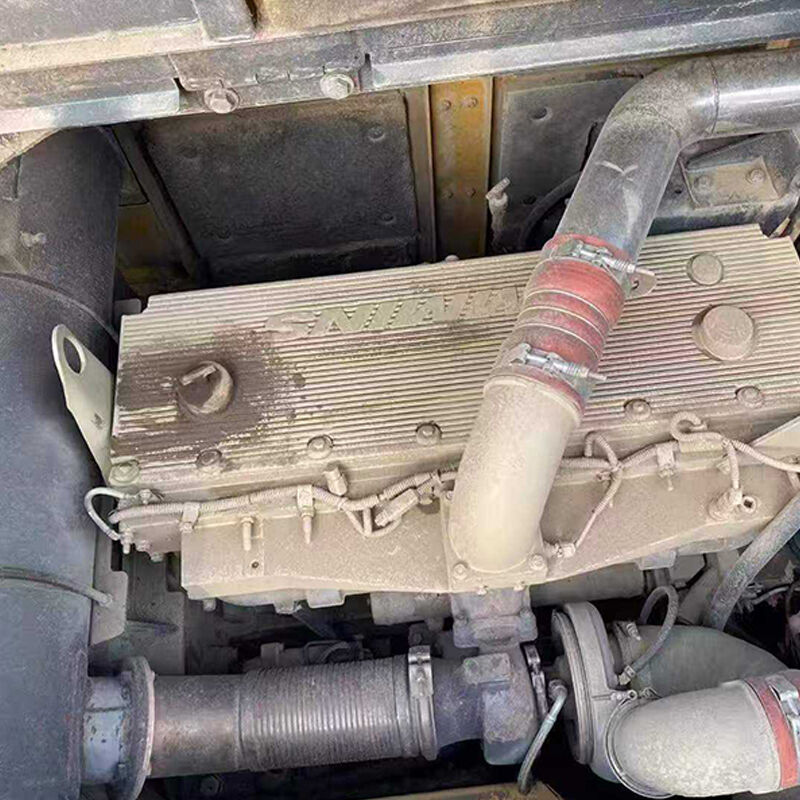

Equipped with a genuine Cummins QSM11-C400 six-cylinder turbocharged diesel engine, the SH600-9 delivers 298KW rated power, ensuring strong and stable power output under extreme heavy loads. The large 630L fuel tank supports about 12 hours of continuous operation, effectively reducing refueling frequency and improving work efficiency. The engine features low fuel consumption, fast heat dissipation and long service life, lowering long-term operational costs.
With 271KN bucket digging force and 328KN arm digging force, plus a 3m³ large-capacity bucket, the SH600-9 easily handles hard rock, dense soil and heavy construction waste. The 3000mm long working arm and 11406mm max. digging distance provide a wide operating range, significantly improving loading and excavation efficiency for large projects.

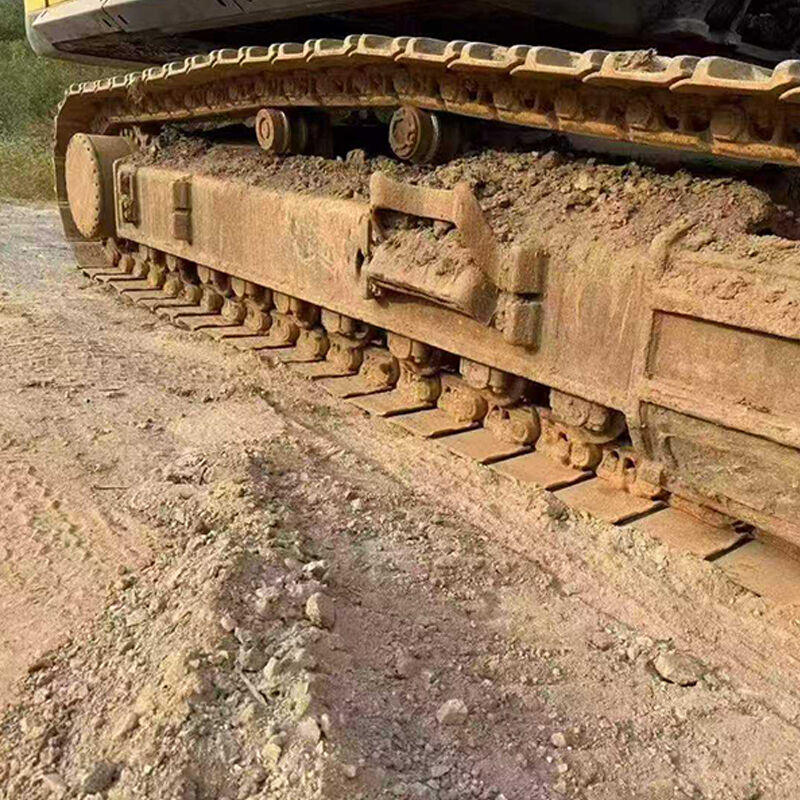

Built with a reinforced thickened steel frame and high-strength working arm, the SH600-9 has excellent anti-deformation and anti-wear capabilities for long-term high-intensity mining work. The heavy-duty track system with 600mm wide tracks ensures low 85.3kPa ground pressure, adapting to soft and uneven terrain. The robust slewing system and heavy-duty rollers enhance driving stability and extend service life.
Adopting an inverted flux control hydraulic pump with 874L/min max. flow, the SH600-9 provides stable and powerful hydraulic pressure, ensuring smooth, fast and precise movements of the working arm, bucket and slewing platform. The 10.4r/min stable swing speed and sensitive hydraulic brake enable accurate positioning in complex mining and construction tasks, improving operation safety.

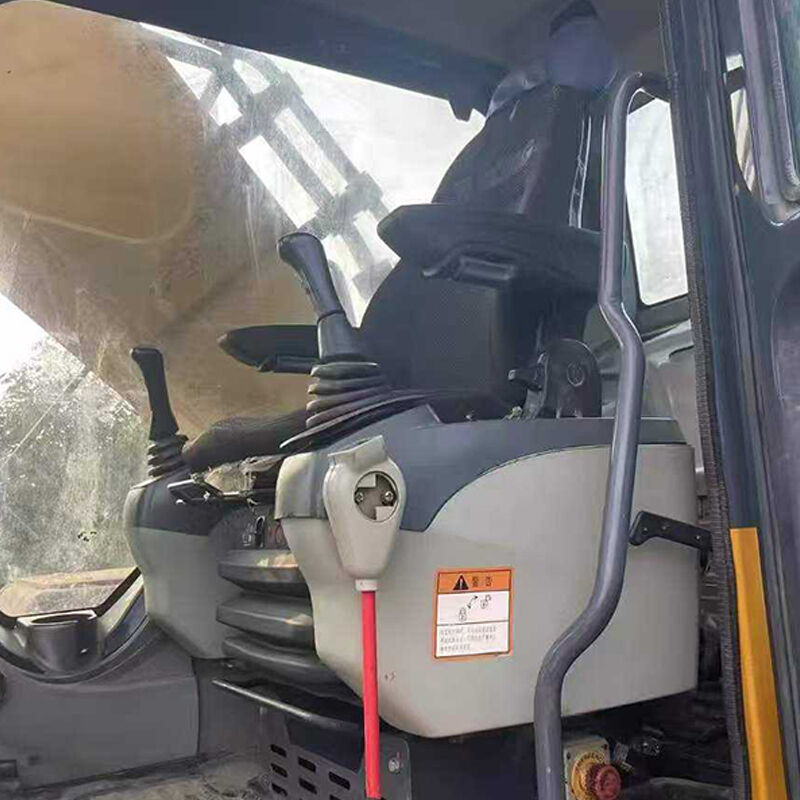

The spacious and ergonomic driving cabin is equipped with a shock-absorbing seat, air conditioning and a clear instrument panel, reducing driver fatigue during long-hour heavy-duty work. The mature engine and hydraulic system use universal spare parts, making daily maintenance convenient and low-cost. The reasonable component layout simplifies inspection and repair, minimizing project downtime.
The SH600-9 Hydraulic Excavator fully complies with CE/EU safety standards and national construction machinery quality standards. It is equipped with complete compliance documents, factory mechanical test reports and quality inspection certificates, supporting smooth customs clearance and market access in global mining and infrastructure-intensive regions.
Q1: What certifications does the SH600-9 have?
A1: The SH600-9 meets CE/EU standards, with complete mechanical test reports and compliance documents provided for global market access.
Q2: Can I customize the SH600-9 excavator?
A2: Yes, we offer customizable bucket capacity, working attachments (such as hydraulic breakers) and body colors to meet your ultra-heavy duty operational requirements.
Q3: What is the delivery time for the SH600-9?
A3: The standard delivery cycle is 30 days after receiving the deposit, with transparent production updates and video pre-shipment inspections available.
Q4: How long can the SH600-9 work continuously?
A4: The Cummins QSM11-C400 engine supports about 12 hours of continuous operation per full fuel tank, suitable for long-term mining and construction work.
Q5: What is the max. digging depth of the SH600-9?
A5: The maximum digging depth is 7114mm, meeting deep excavation requirements for mining and water conservancy projects.
Inquiry & Quotation: Clients submit ultra-heavy duty excavation requirements, and we provide detailed quotations and product solutions.
Order Confirmation: Sign the sales contract and receive the deposit for the SH600-9.
Customization Confirmation: Confirm personalized parameters (bucket specifications, attachments, body color, etc.) with clients.
Production & Assembly: Strictly produce and assemble according to factory standards and customization requirements.
Quality Inspection: Conduct full mechanical testing and video pre-shipment inspection for ultra-heavy duty performance verification.
Packaging & Shipment: Made-to-order packaging compatible with standard heavy-duty container shipping for global delivery.
After-Sales Follow-Up: Track shipment and provide long-term professional after-sales service.
Shandong Shitian Heavy Industry provides comprehensive after-sales support for the SH600-9 Hydraulic Excavator:
1. 1-Year Whole Machine Warranty: Free repair and replacement of damaged parts caused by non-human factors within the warranty period.
2. Global Technical Support: A professional technical team provides 24/7 online consultation and troubleshooting guidance for ultra-heavy duty excavation operations.
3. Spare Parts Supply: Long-term supply of original Cummins engine parts and excavator components with fast global delivery to minimize mining project downtime.
4. Operation Training: Provide detailed operation manuals and video training to help drivers master ultra-heavy duty excavation and maintenance skills quickly.
