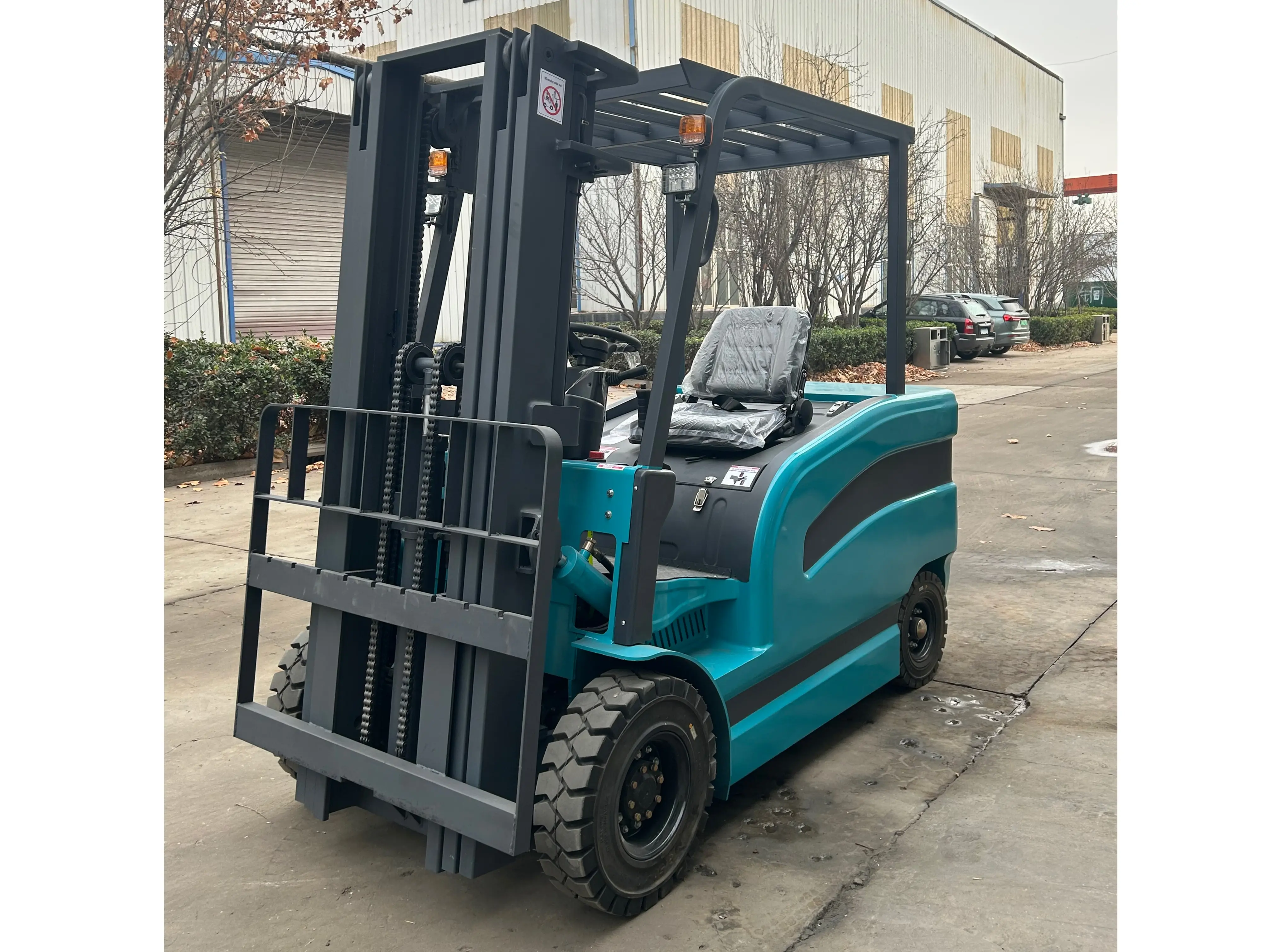

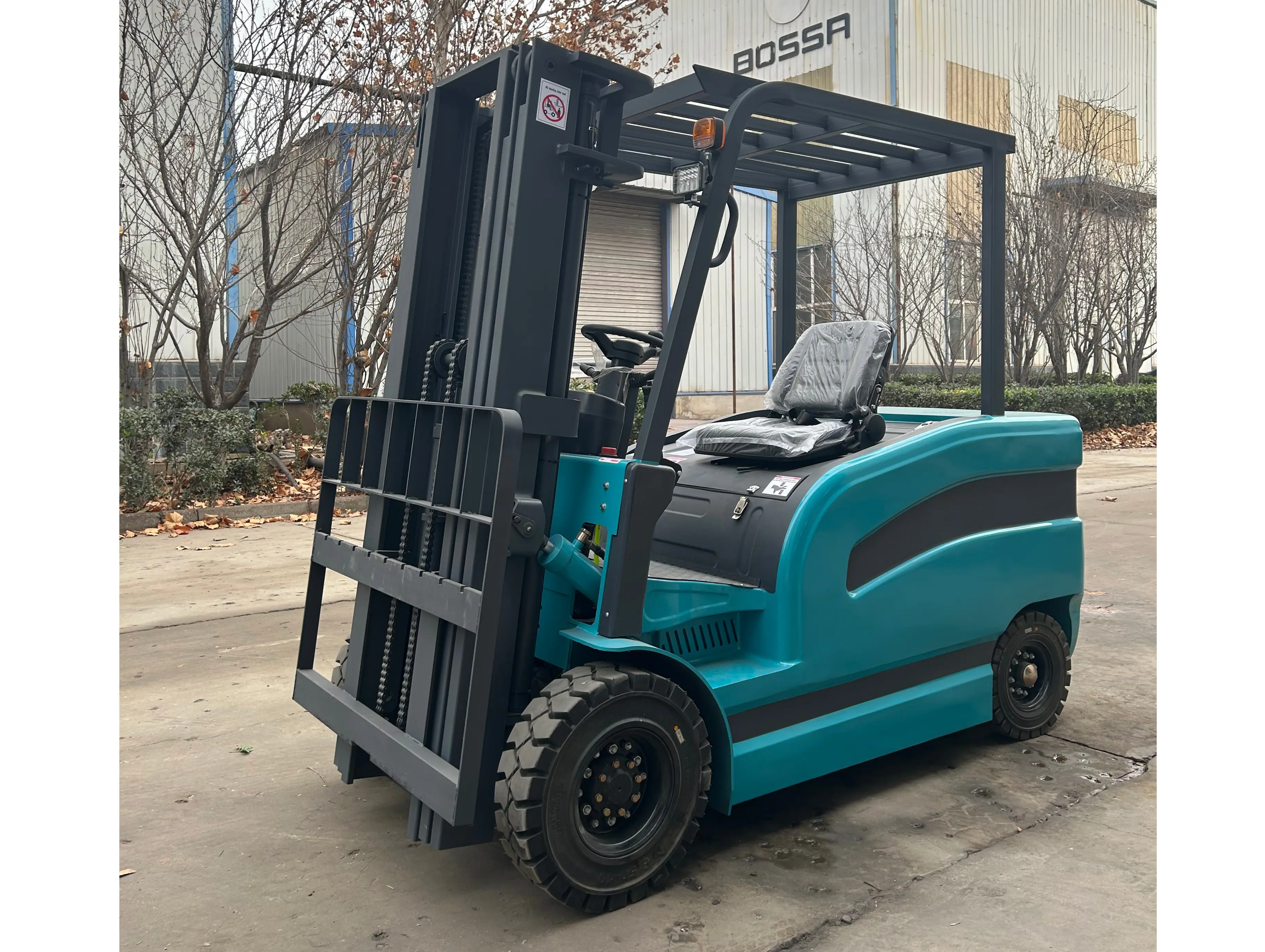

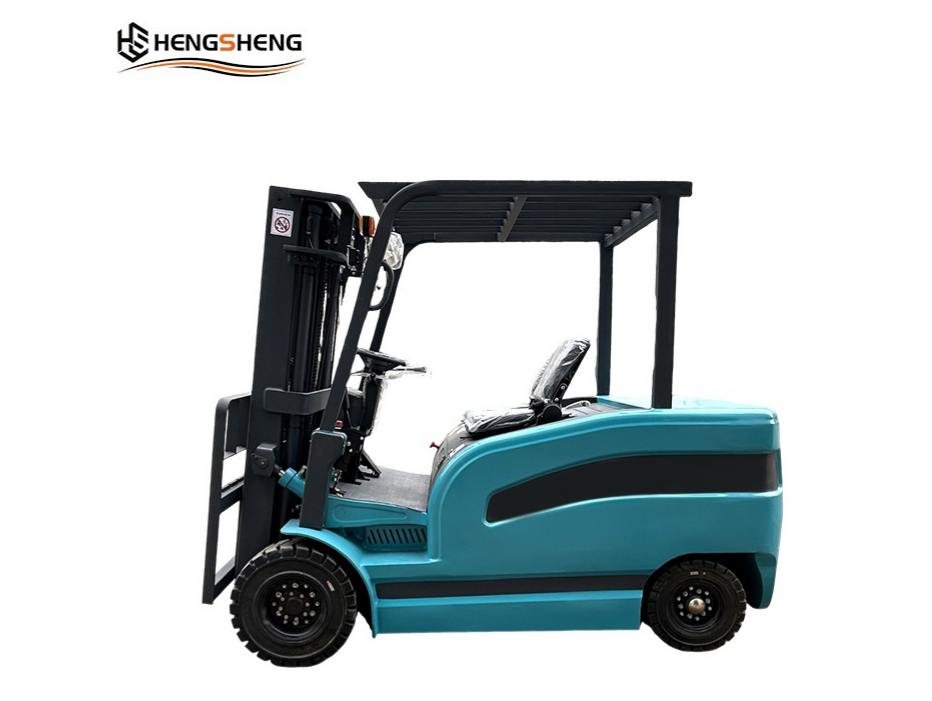

HS30-E Electric Forklift Truck – 3-Ton Capacity, 100Ah Lithium Battery, 3800kg Weight, Hydraulic Power Steering
The HS30-E Electric Forklift Truck, manufactured by Hebei Hengsheng Heavy Industry Machinery Equipment Co., Ltd., is a heavy-duty 3-ton sit-down operated electric forklift designed for efficient material handling in large warehouses, factories, logistics hubs, and industrial facilities. Built to meet CE/EU standards, this forklift ensures compliance with global safety and operational requirements, supporting smooth market access worldwide. Equipped with a 100Ah lithium battery and hydraulic power steering, the HS30-E delivers reliable, high-capacity performance and flexible handling for heavy pallets, bulk goods, and industrial materials. With durable solid tires, customizable lift height & fork specifications, it adapts to diverse heavy-duty operational needs, making it an ideal choice for industrial material handling tasks. The HS30-E is made-to-order with no regular inventory, and the standard production and delivery cycle is 15–20 days after order confirmation and deposit payment.
The HS30-E is engineered for heavy-duty, stable material handling, with all key specifications strictly aligned with factory standards:
| Parameter | Specification |
|---|---|
| Model | CPD30 (Self weight: 3.8 tons; Self-weight excluding battery: 3.56 tons) |
| Dimensions (L×W×H) | 2700 × 1260 × 2150 mm |
| Lift Height | 3 meters (customizable) |
| Fork | One-piece forged thickening fork (multiple sizes available), national standard adjustable fork spacing |
| Paint | Automotive-grade baking paint – moisture-proof & rust-proof primer, two topcoats, durable and fade-resistant |
The entire series comes standard with a one‑key high/low speed adjustment function.
| Parameter | Specification |
|---|---|
| Battery | Lithium battery (100Ah) |
| Charging Time | 6–8 hours |
| Continuous Operating Hours | Approx. 6 hours |
| Drive Motor | National standard 11.5KW full AC brushless motor |
| Lift Motor | National standard 10KW full AC brushless motor |
Motor features: all copper windings, low noise, fast heat dissipation, fully enclosed internal structure, continuous operation, gentle slope & steep descent capability, high power.
Controller: Fully imported chip dual controller – two independent controllers with built‑in fault alarm and independent heat dissipation.
Full-vehicle wiring harness with high-temperature protection; hydraulic component joints and H-heads feature double-layer protection.
| Component | Specification |
|---|---|
| Front Axle | Heavy-duty 330 cast steel front axle |
| Rear Axle | Thickened suspension integrated rear axle (forklift-specific) |
| Mast | National standard 1480 steel mast |
| Chain | 7-link bite chain |
| Hydraulic Cylinder | Dual hydraulic cylinder – imported double-layer oil seals, cylinder inner wall secondary-processed for smooth surface, no leakage or seepage |
| Hydraulic Hose | Double-layer steel wire high-pressure resistant hose with external wear-resistant protective cover |
| System / Component | Specification |
|---|---|
| Steering System | Hydraulic power steering |
| Braking System | Oil brake + handbrake |
| Tire – Front | 650-10 (solid tire) |
| Tire – Rear | 500-8 (solid tire) |
| Lighting & Signals | Headlight, left & right turn signals, brake light, tail light, electric horn, etc. |
| Dashboard & Controls | Multi-function LCD instrument panel, password/PIN start, automatic power-off when operator leaves seat |
| Charger | 220V intelligent charger with automatic voltage regulation and auto shut-off when fully charged |
| Feature | Description |
|---|---|
| Multi-function large dashboard | Fault code warning |
| Anti-fall device | – |
| Oil pipe protection tube | – |
Made-to-order packaging, compatible with standard container shipping for global delivery.
Full factory mechanical test report and video pre-shipment inspection provided; support customizable lift height, fork specifications and body color to meet brand or operational requirements.
Equipped with a 100Ah lithium battery, the HS30-E supports about 6 hours of continuous operation, with stable power output for daily heavy-duty warehouse and factory work. The 6-8 hours fast charging design meets long-cycle operation needs, with low maintenance and long service life.
Adopts 11.5KW drive motor + 10KW lift motor (full AC brushless, all copper wires inside), featuring no noise, fast heat dissipation and strong power, with gentle slope and steep descent function for stable heavy-load operation.
Built with hydraulic power steering, heavy-duty 330 cast steel front axle and integrated suspension rear axle, the forklift offers flexible steering and stable running. Solid tires are wear-resistant and suitable for long-term high-traffic industrial use.
Equipped with 7-piece bite chain and dual hydraulic cylinders with imported double-layer oil seals, the hydraulic system is 100% leak-proof. Double layer steel wire high-pressure oil pipes ensure long service life under heavy-load conditions.
Features multi-functional LCD instrument panel, password swipe start, automatic power-off upon leaving the seat and fault code warning. Lift height, fork specifications and body color can be customized to match different operational needs.
Large Warehouse & Logistics Operations: Heavy pallet loading/unloading, bulk goods transport, and storage handling in large distribution centers and industrial warehouses.
Factory & Industrial Material Handling: Raw material transport, finished goods movement, and production line logistics in manufacturing facilities with heavy load requirements.
Distribution Centers & Freight Yards: Efficient heavy material handling in logistics hubs, supporting fast-paced loading, unloading, and inventory management for bulk shipments.
Construction & Building Material Facilities: Transport and stacking of heavy construction materials, pallets of bricks, tiles, and building supplies in yards and storage facilities.
Port & Terminal Logistics: Heavy-duty material handling in port warehouses and cargo storage areas.
Q: What certifications does the HS30-E have?
A: The HS30-E meets CE/EU standards, with complete mechanical test reports and compliance documents provided for global market access.
Q: Can I customize the forklift?
A: Yes, we offer customizable lift height, fork dimensions and body colors to meet your operational and brand requirements.
Q: What is the delivery time for the HS30-E?
A: The standard delivery cycle is 15–20 days after receiving the deposit, with transparent production updates and video pre-shipment inspections available.
Q: How long can the forklift work continuously?
A: The 100Ah lithium battery supports about 6 hours of continuous operation, with a charging time of 6-8 hours.
Q: What kind of motor and brake does the forklift use?
A: It uses 11.5KW/10KW full AC brushless motors, oil brake + handbrake, and hydraulic power steering for stable and safe operation.
The HS30-E Electric Forklift Truck is a heavy-duty, reliable material handling solution designed for efficiency and adaptability in large warehouses, factories, and logistics facilities. As a direct factory, we eliminate intermediate costs, offer flexible customization, and provide full export support including customs documents and logistics coordination. With a 1-year warranty and professional after-sales service, Hebei Hengsheng Heavy Industry ensures you receive a durable, compliant forklift tailored to your heavy-duty operational and market needs. Welcome to consult and place orders for bulk inquiries.
