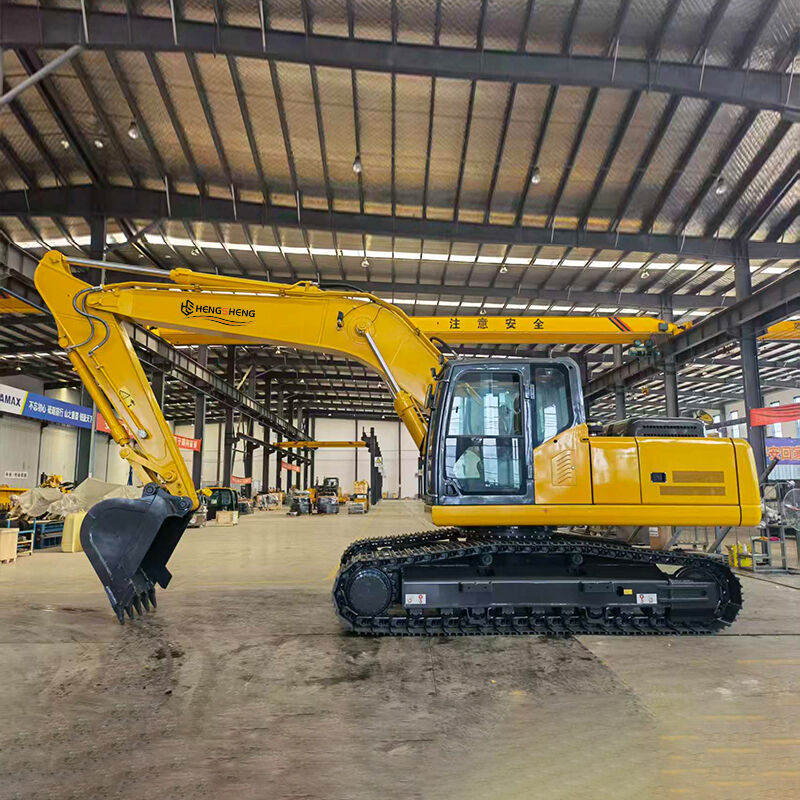

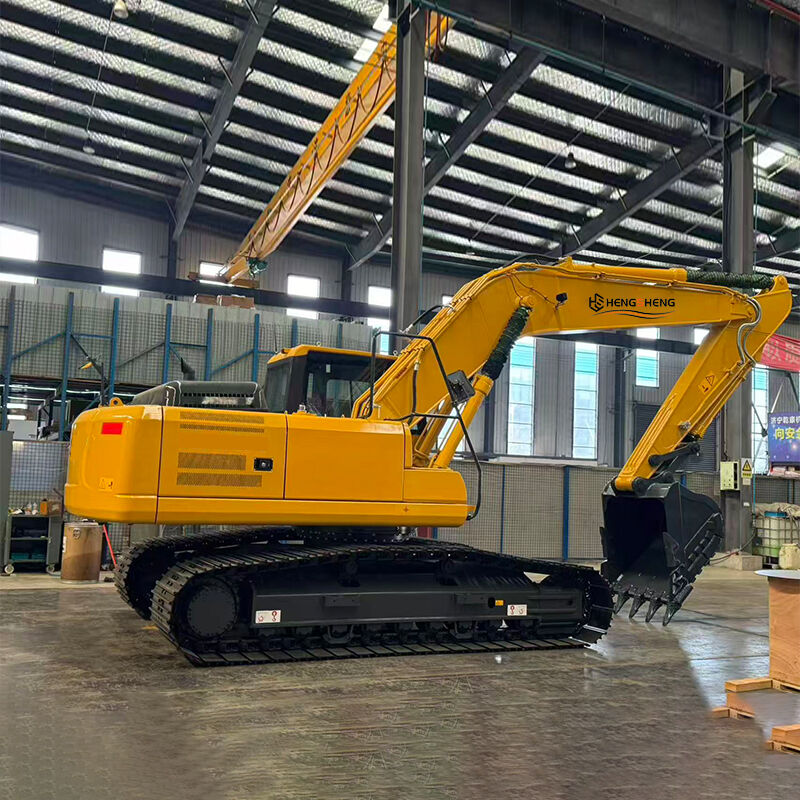

HS220-8 Hydraulic Excavator – 21.2 Ton Operating Weight, 133KW Cummins Engine, 1.06m³ Bucket Capacity, Heavy-Duty Digging for Construction, Mining & Infrastructure Projects
Manufactured by Shandong Shitian Heavy Industry Co., Ltd., the HS220-8 Hydraulic Excavator is a heavy-duty sit-down operated construction machine engineered for high-efficiency digging, loading, trenching and earthmoving tasks in large-scale industrial projects. Designed and produced in strict compliance with CE/EU safety standards and national construction machinery specifications, this excavator meets global safety and performance requirements, supporting seamless market access for construction, mining, infrastructure and municipal projects worldwide.
Built for rigorous heavy-load operations, the HS220-8 is equipped with a reliable Cummins industrial diesel engine, delivering powerful and consistent power output for long-hour high-intensity work. Featuring a robust reinforced steel frame, high-strength working arm and heavy-duty track system, it adapts to harsh working conditions such as rocky terrain, muddy ground, steep slopes and uneven construction sites. The advanced hydraulic system ensures precise and smooth operation, while the durable digging bucket enhances efficiency in handling hard soil, gravel and construction waste. Customizable bucket attachments and body colors are available to meet diverse operational and brand requirements.
The HS220-8 is made-to-order with no regular inventory. The standard production and delivery cycle is 30 days after order confirmation and deposit payment. Every unit undergoes comprehensive factory mechanical testing and video pre-shipment inspection to eliminate defects, meeting the strict quality demands of heavy-duty excavation and earthmoving operations.
The HS220-8 is precision-engineered for stable and powerful heavy-duty performance, with all key specifications strictly aligned with factory and industry standards:
| Parameter | Specification |
|---|---|
| Model | HS220-8 |
| Type | Hydraulic Excavator |
| Operating Weight | 21200 kg |
| Engine | Cummins 68TAA59 Industrial Diesel Engine |
| Engine Type | Direct Injection, 6-Cylinder Inter-cooled |
| Displacement | 5.9 L |
| Rated Power | 133 kW / 2000 rpm |
| Maximum Torque | 708 N·m / 1500 rpm |
| Standard Bucket Capacity | 1.06 m³ |
| Bucket Width | 1254 mm |
| Bucket Excavation Force | 146 KN |
| Arm Excavation Force | 107 KN |
| Arm Length | 2925 mm |
| Hydraulic System | Variable Double Plunger Pump |
| Rotary Circuit Pressure | 2 × 224 MPa |
| Travel Circuit Pressure | 2 MPa |
| Control Oil Circuit Pressure | 3.9 MPa |
| Travel Motor | Variable Plunger Motor |
| Traction Force | 214 KN |
| Climbing Ability | 70% (35°) |
| Ground Pressure | 49.8 kPa |
| Track Width | 600 mm |
| Slewing System | Swash Plate Plunger Motor |
| Slewing Speed | 12.4 r/min |
| Braking System | Hydraulic Braking |
| Fuel Tank Capacity | 330 L |
| Hydraulic Oil Tank Capacity | 250 L |
| Engine Oil Volume | 2 L |
| Condition | New |
| Place of Origin | Jining, Shandong, China |
| Category | Parameter | Specification |
|---|---|---|
| Engine | Model | Cummins 6BTAA5.9 |
| Type | Direct injection, supercharging, inter-cooling | |
| Number of cylinders × Bore × Stroke (mm) | 6 × 102 × 120 | |
| Displacement (L) | 5.9 | |
| Power (kW/rpm) | 133/2000 | |
| Maximum torque (N·m/rpm) | 708/1500 | |
| Bucket | Bucket volume (m³) | 1.06 |
| Bucket width (mm) | 1254 | |
| Bucket teeth | 5 | |
| Digging Force | Bucket excavation force (kN) | 146 |
| Arm excavation force (kN) | 107 | |
| Arm length (mm) | 2925 | |
| Hydraulic System | Type | Variable double plunger pump |
| Maximum flow (L/min) | 2×224 | |
| Travel circuit pressure (MPa) | 34.3 | |
| Rotary circuit pressure (MPa) | 25.5 | |
| Control oil circuit pressure (MPa) | 3.9 | |
| Walking System | Walking motor | Variable plunger motor |
| Number of track sections | 2×46 | |
| Walking speed (km/h) | 5.1/3.1 | |
| Traction force (kN) | 214 | |
| Climbing ability | 70% (35°) | |
| Number of supporting rollers | 2×9 | |
| Number of carrier wheel | 2×2 | |
| Track width (mm) | 600 | |
| Operating Weight & Ground Pressure | Operating weight (kg) | 21200 |
| Track width (mm) | 600 | |
| Ground pressure (kPa) | 49.8 | |
| Slewing System | Type of slewing motor | Swash plate plunger motor |
| Slewing speed (r/min) | 12.4 | |
| Braking form | Hydraulic braking | |
| Oil Capacity | Fuel tank (L) | 330 |
| Cooling system (L) | 28 | |
| Engine oil volume (L) | 2 | |
| Hydraulic oil tank volume (L) | 250 | |

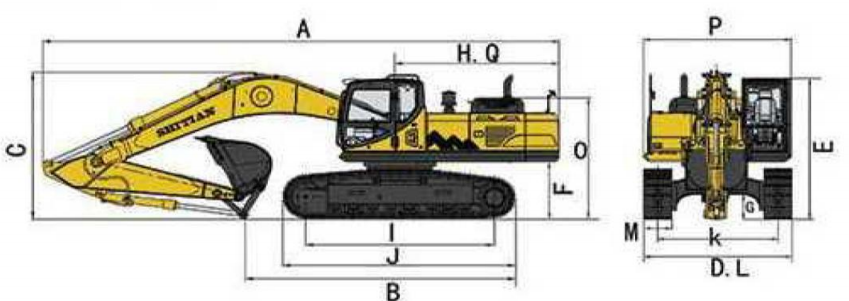

| Outline size |
 |
|
| Arm Type | A - Total length (mm) | 9625 |
| B - Grounding length (when transporting) (mm) | 4915 | |
| C - Overall height (to boom top) (mm) | 3075 | |
| D - Overall width (mm) | 2980 | |
| E - Overall height (to cab top) (mm) | 3055 | |
| F - Counterweight ground clearance (mm) | 1075 | |
| G - Min. ground clearance (mm) | 468 | |
| H - Tail slewing radius (mm) | 2925 | |
| I - Roller to roller distance (mm) | 3360 | |
| J - Track length (mm) | 4140 | |
| K - Track to track distance (mm) | 2380 | |
| L - Track width (mm) | 2800 | |
| M - Track plate width (mm) | 600 | |
| O - Hood height (mm) | 2395 | |
| P - Slewing platform width (mm) | 2725 | |
| Q - Distance from the center of rotation to the rear end (mm) | 2920 | |

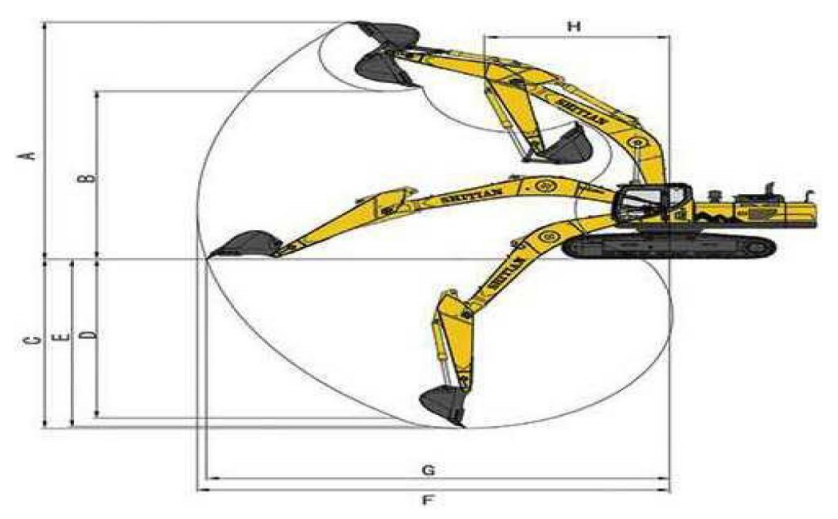

| Boom Type | Maximum excavation height (mm) | 10950 |
| B - Maximum unloading height (mm) | 7190 | |
| C - Maximum excavation depth (mm) | 6490 | |
| D - Maximum vertical excavation depth (mm) | 5915 | |
| F - Maximum excavation range (mm) | 9860 | |
| G - Maximum ground excavation range (mm) | 9675 | |
| H - Minimum slewing radius of working device (mm) | 2970 | |
| Scope of work |  |
|
The HS220-8 Hydraulic Excavator is widely applicable to large-scale heavy-duty construction and industrial scenarios requiring powerful digging and earthmoving capacity:
Large Construction Projects: Foundation excavation, basement digging, earthwork backfilling and site leveling for high-rise buildings, commercial complexes and industrial parks.
Mining & Quarry Operations: Ore extraction, rock breaking, material loading and site cleaning in open-pit mines, quarries and mineral processing plants.
Infrastructure Construction: Road and railway subgrade digging, bridge foundation construction, tunnel excavation and highway expansion projects.
Water Conservancy & River Projects: River dredging, canal excavation, reservoir construction and flood control engineering, adapting to wet and muddy working environments.
Urban Municipal Works: Large-scale pipeline laying, urban demolition, greening earthwork and public facility construction, supporting high-efficiency urban renovation projects.
Equipped with a genuine Cummins68TAA59 industrial diesel engine, the HS220-8 delivers stable 133KW power and 708N·M maximum torque, ensuring strong power output even under heavy-load and harsh working conditions. The direct injection and inter-cooled design features low fuel consumption, fast heat dissipation and long service life, supporting about 10 hours of continuous operation per full fuel tank and effectively reducing long-term operational costs.
With a 1.06m³ large-capacity bucket, 146KN bucket excavation force and 107KN arm excavation force, the HS220-8 easily handles hard soil, rocks and dense construction waste. The 2925mm long working arm provides a wide operating range, enabling efficient digging, loading and material handling to significantly improve project progress and work efficiency.

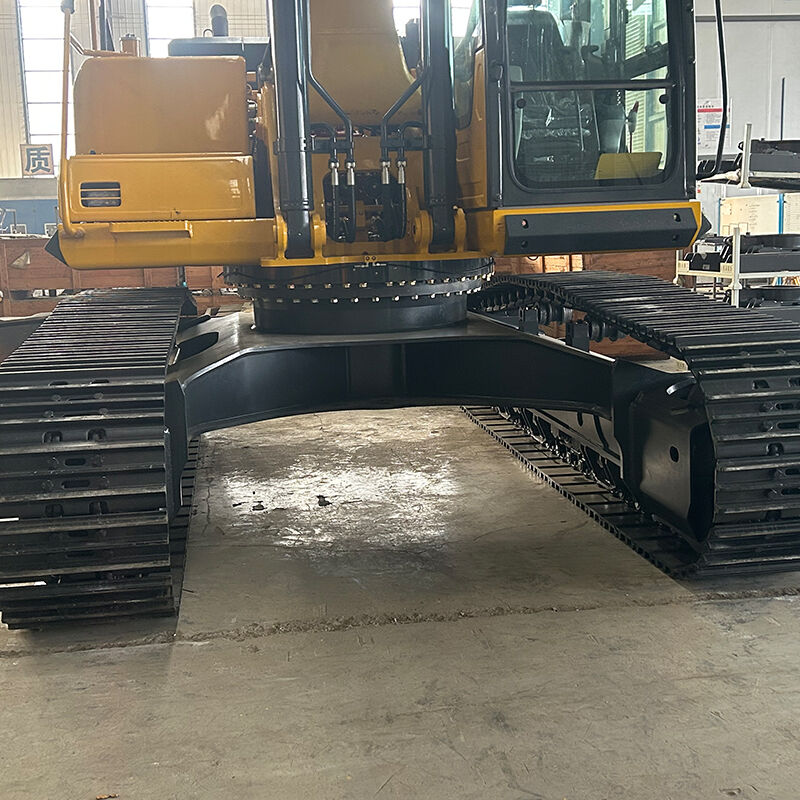

Built with a reinforced thickened steel frame and high-strength working arm, the HS220-8 has excellent anti-deformation and anti-wear capabilities, suitable for long-term high-intensity mining and construction work. The heavy-duty track system with 600mm wide tracks ensures stable driving and low ground pressure, adapting to soft and uneven terrain. Wear-resistant track plates and heavy-duty support rollers extend the whole machine’s service life.

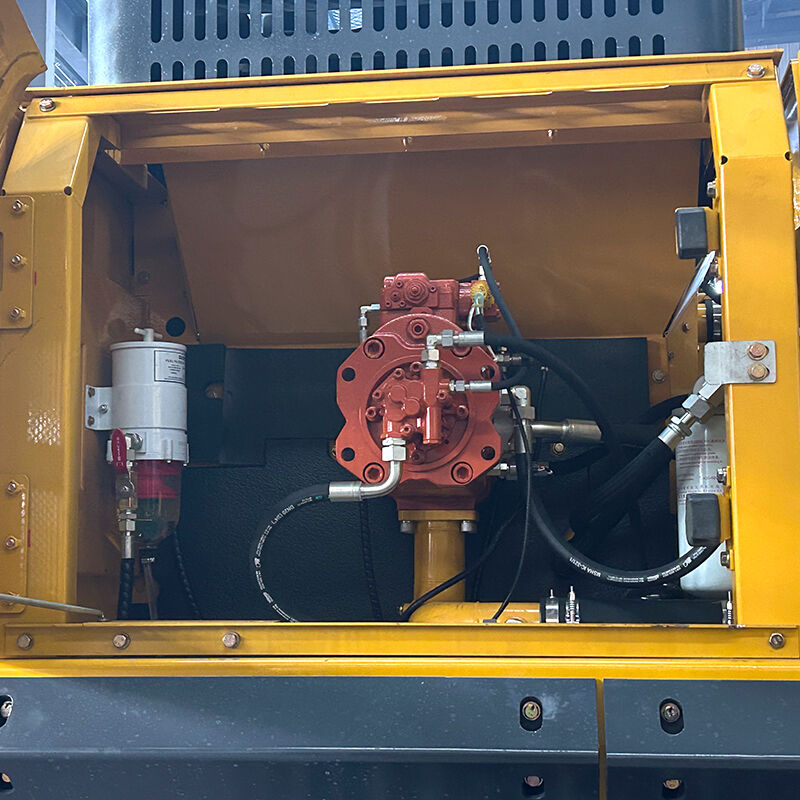

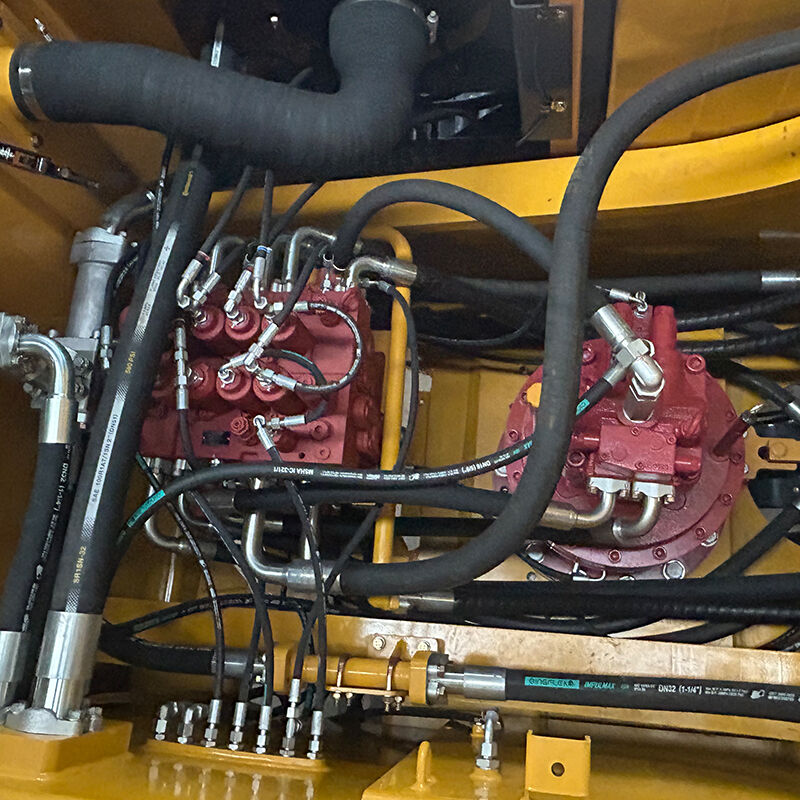

Adopting a variable double plunger pump hydraulic system, the HS220-8 provides stable hydraulic pressure and flow, ensuring precise and smooth movements of the working arm, bucket and slewing platform. The hydraulic braking system delivers reliable and sensitive braking performance. The 12.4r/min stable slewing speed enables accurate positioning during complex excavation tasks, improving operation accuracy and safety.
The spacious and ergonomic driving cabin is equipped with a shock-absorbing seat, air conditioning and a clear multi-functional instrument panel, reducing driver fatigue during long-hour heavy-duty work. The control levers are reasonably laid out for simple and proficient operation. The mature engine and hydraulic system design features universal spare parts, making daily maintenance convenient and low-cost, minimizing downtime for large-scale projects.
The HS220-8 Hydraulic Excavator fully complies with CE/EU safety standards and national construction machinery quality standards. It is equipped with complete compliance documents, factory mechanical test reports and quality inspection certificates, supporting smooth customs clearance and market access in global markets such as Europe, Southeast Asia, the Middle East, Africa and other infrastructure-intensive regions.
Q1: What certifications does the HS220-8 have?
A1: The HS220-8 meets CE/EU standards, with complete mechanical test reports and compliance documents provided for global market access.
Q2: Can I customize the HS220-8 excavator?
A2: Yes, we offer customizable bucket specifications, working attachments (such as breakers and grapples) and body colors to meet your operational and brand requirements for heavy-duty excavation.
Q3: What is the delivery time for the HS220-8?
A3: The standard delivery cycle is 30 days after receiving the deposit, with transparent production updates and video pre-shipment inspections available.
Q4: How long can the HS220-8 work continuously?
A4: The Cummins industrial diesel engine supports about 10 hours of continuous operation per full fuel tank, suitable for long-term high-intensity construction and mining work.
Q5: What kind of engine does the HS220-8 use?
A5: It uses a genuine Cummins68TAA59 6-cylinder inter-cooled diesel engine, delivering stable power and reliable performance for heavy-duty excavation tasks.
Inquiry & Quotation: Clients submit heavy-duty excavation requirements, and we provide detailed quotations and product solutions.
Order Confirmation: Sign the sales contract and receive the deposit for the HS220-8.
Customization Confirmation: Confirm personalized parameters (bucket specifications, attachments, body color, etc.) with clients.
Production & Assembly: Strictly produce and assemble according to factory standards and customization requirements.
Quality Inspection: Conduct full mechanical testing and video pre-shipment inspection for heavy-duty performance verification.
Packaging & Shipment: Made-to-order packaging compatible with standard container shipping for global delivery.
After-Sales Follow-Up: Track shipment and provide long-term professional after-sales service.
Shandong Shitian Heavy Industry provides comprehensive after-sales support for the HS220-8 Hydraulic Excavator:
1. 1-Year Whole Machine Warranty: Free repair and replacement of damaged parts caused by non-human factors within the warranty period.
2. Global Technical Support: A professional technical team provides online consultation and troubleshooting guidance for heavy-duty excavation operation issues.
3. Spare Parts Supply: Long-term supply of original Cummins engine parts and excavator components with fast global delivery to minimize project downtime.
4. Operation Training: Provide detailed operation manuals and video training to help drivers master heavy-duty excavation and maintenance skills quickly.
