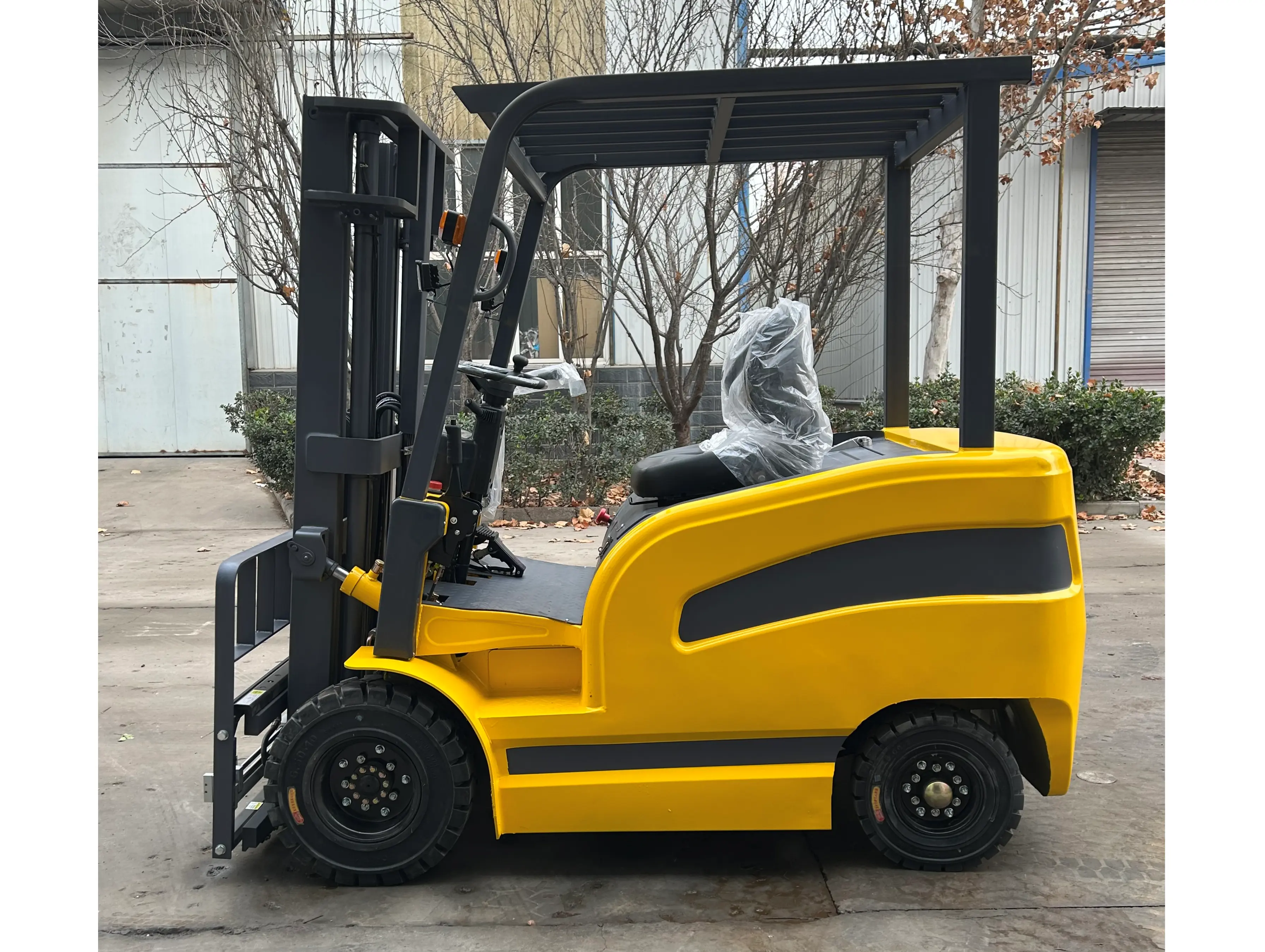

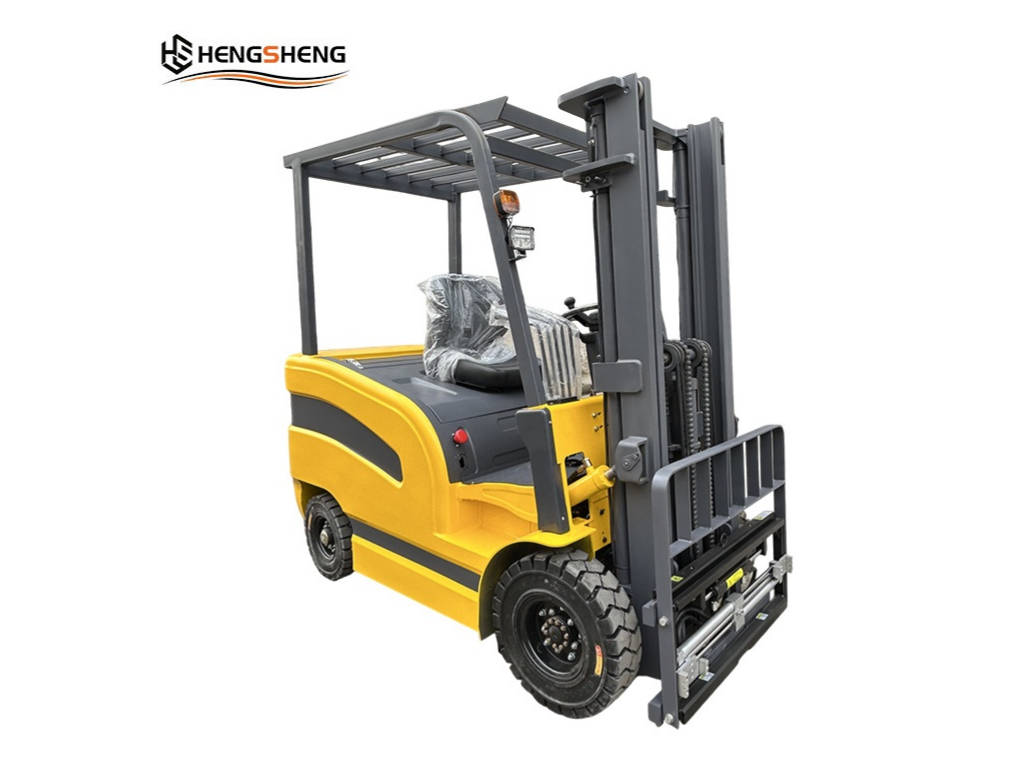

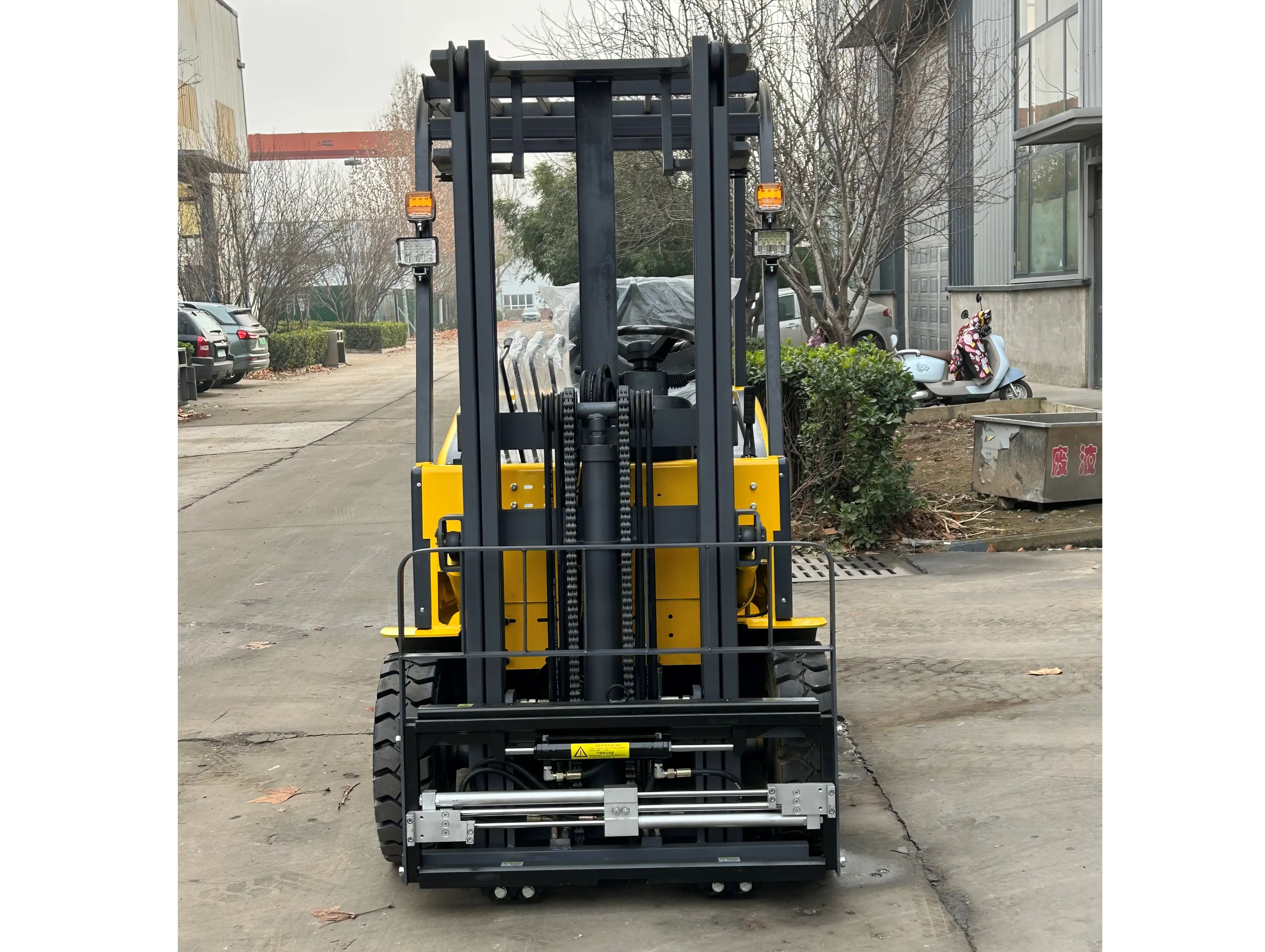

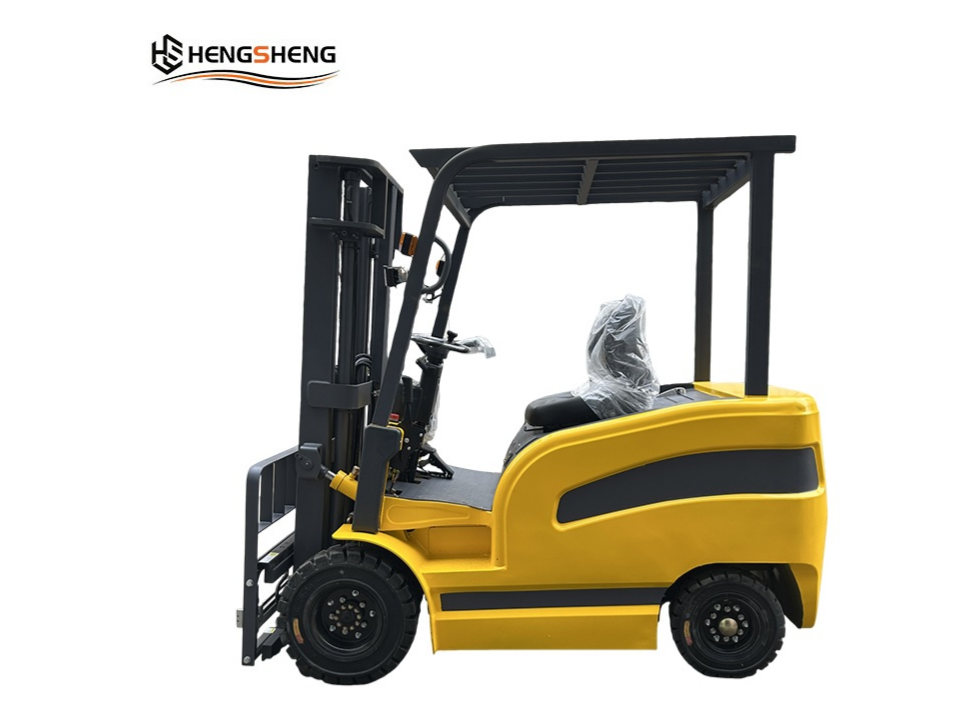

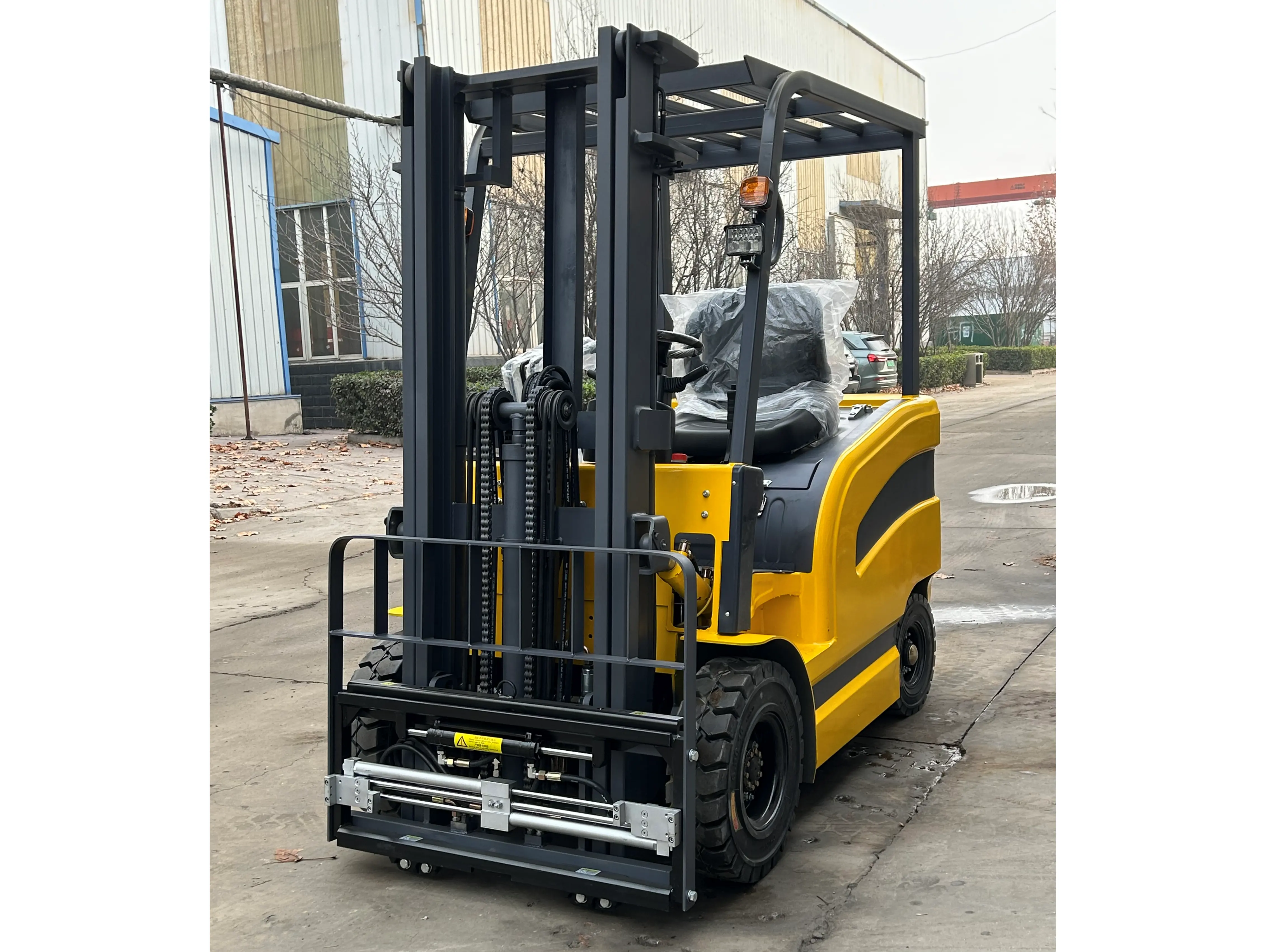

HS15-E Electric Forklift Truck – 60V/70Ah Maintenance-Free Battery, 2700kg Weight, Hydraulic Power Steering for Warehouse Material Handling
The HS15-E Electric Forklift Truck, manufactured by Hebei Hengsheng Heavy Industry Machinery Equipment Co., Ltd., is a sit-down operated electric forklift designed for efficient material handling in warehouses, factories, logistics centers, and industrial facilities. Built to meet CE/EU standards, this forklift ensures compliance with global safety and operational requirements, supporting smooth market access worldwide. Equipped with a 60V/70Ah maintenance-free battery and hydraulic power steering, the HS15-E delivers reliable performance, stable control, and flexible handling for pallets, goods, and materials. With a durable solid tire design and customizable lift height & forks, it adapts to diverse operational needs, making it an ideal choice for industrial material handling tasks. The HS15-E is made-to-order with no regular inventory, and the standard production and delivery cycle is 15–20 days after order confirmation and deposit payment.
The HS15-E is engineered for stable, efficient material handling, with all key specifications strictly aligned with factory standards:
| Parameter | Specification |
|---|---|
| Model | CPD15 (Self weight: 2.7 tons) |
| Dimensions (L×W×H) | 2150 × 1200 × 2150 mm |
| Lift Height | 3 meters (customizable) |
| Fork | One-piece forged thickening fork (multiple sizes available), national standard adjustable fork spacing |
| Paint | Automotive-grade baking paint – moisture-proof & rust-proof primer, two topcoats, durable and fade-resistant |
The entire series comes standard with a one‑key high/low speed adjustment function.
| Parameter | Specification |
|---|---|
| Battery | 5 × Chaowei maintenance‑free battery (60V/70Ah) |
| Charging Time | 6–8 hours |
| Continuous Operating Hours | Approx. 6 hours |
| Drive Motor | National standard 5KW full AC brushless motor |
| Lift Motor | National standard 3KW full AC brushless motor |
Motor features: all copper windings, low noise, fast heat dissipation, fully enclosed internal structure, continuous operation, gentle slope & steep descent capability, high power.
Controller: Fully imported chip dual controller – two independent controllers with built‑in fault alarm and independent heat dissipation.
Full‑vehicle wiring harness with high‑temperature protection; hydraulic component joints and H‑heads feature double‑layer protection.
| Component | Specification |
|---|---|
| Front Axle | Heavy‑duty 235 cast steel front axle |
| Rear Axle | Thickened suspension integrated rear axle (forklift‑specific) |
| Mast | National standard 12H type forklift‑dedicated steel mast |
| Chain | 7‑link bite chain |
| Hydraulic Cylinder | Dual hydraulic cylinder – imported double‑layer oil seals, cylinder inner wall secondary‑processed for smooth surface, no leakage or seepage |
| Hydraulic Hose | Double‑layer steel wire high‑pressure resistant hose with external wear‑resistant protective cover |
| System / Component | Specification |
|---|---|
| Steering System | Hydraulic power steering |
| Braking System | Oil brake + handbrake |
| Tire – Front | 650-10 (solid tire) |
| Tire – Rear | 500-8 (solid tire) |
| Lighting & Signals | Headlight, left & right turn signals, brake light, tail light, electric horn, etc. |
| Dashboard & Controls | Multi‑function LCD instrument panel, password/PIN start, automatic power‑off when operator leaves seat |
| Charger | 220V intelligent charger with automatic voltage regulation and auto shut‑off when fully charged |
Made-to-order packaging, compatible with standard container shipping for global delivery.
Full factory mechanical test report and video pre-shipment inspection provided; support customizable lift height, fork specifications and body color to meet brand or operational requirements.
Equipped with a 60V/70Ah maintenance-free battery, the HS15-E supports about 6 hours of continuous operation, with low maintenance and stable power output for daily warehouse and factory work. The full AC brushless drive & lift motors feature no noise, fast heat dissipation and strong power.
Adopts sit-down operation design to reduce fatigue during long shifts. Equipped with a multi-functional LCD instrument panel, password swipe start and automatic power-off upon leaving the seat, the operation is more intelligent and user-friendly.
Built with hydraulic power steering, heavy-duty cast steel front axle and integrated suspension rear axle, the forklift offers flexible steering and stable running. Solid tires are wear-resistant and suitable for long-term high-traffic use.
Equipped with 7-piece bite chain and dual hydraulic cylinders with imported double-layer oil seals, the hydraulic system is 100% leak-proof. Double-layer steel wire high-pressure oil pipes with external wear-resistant protective cover ensure long service life.
Lift height, fork specifications and body color can be customized to match different pallet sizes, load types and brand needs, suitable for diverse material handling scenarios.
Warehouse & Logistics Operations: Pallet loading/unloading, goods transport, and storage handling in distribution centers and retail warehouses.
Factory & Industrial Material Handling: Raw material transport, finished goods movement, and production line logistics in manufacturing facilities.
Distribution Centers & Freight Yards: Efficient material handling in logistics hubs, supporting fast-paced loading, unloading, and inventory management.
Retail & Commercial Storage: Stock movement, inventory replenishment, and material handling in large retail stores and commercial storage facilities.
Q: What certifications does the HS15-E have?
A: The HS15-E meets CE/EU standards, with complete mechanical test reports and compliance documents provided for global market access.
Q: Can I customize the forklift?
A: Yes, we offer customizable lift height, fork dimensions and body colors to meet your operational and brand requirements.
Q: What is the delivery time for the HS15-E?
A: The standard delivery cycle is 15–20 days after receiving the deposit, with transparent production updates and video pre-shipment inspections available.
Q: How long can the forklift work continuously?
A: The 60V/70Ah maintenance-free battery supports about 6 hours of continuous operation.
Q: What kind of motor and brake does the forklift use?
A: It uses 5KW/3KW full AC brushless motors, oil brake + handbrake, and hydraulic power steering for stable and safe operation.
The HS15-E Electric Forklift Truck is a reliable, customizable material handling solution designed for efficiency and adaptability in warehouses, factories, and logistics facilities. As a direct factory, we eliminate intermediate costs, offer flexible customization, and provide full export support including customs documents and logistics coordination. With a 1-year warranty and professional after-sales service, Hebei Hengsheng Heavy Industry ensures you receive a durable, compliant forklift tailored to your operational and market needs. Welcome to consult and place orders for bulk inquiries.
